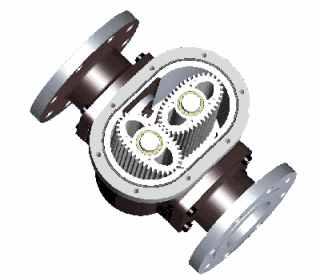

Elliptical flowmeter product features
1. It is measured by the rotation of the elliptical gear by the indenter of the measured medium.
2. The larger the viscosity of the medium, the smaller the leakage amount from the gear and the metering gap. Therefore, the larger the stickiness of the nuclear medium, the smaller the leakage error, and the better the measurement.
3. It is suitable for the measurement of high viscosity medium flow, but it is not suitable for fluids containing solid particles (solid particles will lock the gears, so the flow cannot be measured). If the liquid to be tested is contaminated with gas, it will also cause measurement errors.
Waist wheel flowmeter product features
1. Light weight, high precision, easy to install and use.
2. The pressure loss is small and the range is large.
3. It is mainly used for the measurement of gasoline, kerosene and light diesel oil in the petrochemical, electric power, metallurgy, transportation, national defense and trade sectors.
Dual Rotor Flowmeter Features
1. Applicable to thin oil, light oil, heavy oil, crude oil with large sand content and large water content. The viscosity of the liquid to be measured is large.
2. The flow rate of the liquid passing through the flowmeter is large.
3. Long service life, high accuracy and high reliability.
4. The internal pressure loss is minimal.
5. Can be networked directly with your computer.
Orifice flowmeter product features
1. The structure of the throttling device is easy to copy, simple and firm, stable and reliable in performance, long in service life and low in price.
2. Wide application range, all single-phase flow can be measured, and some mixed phase flow can also be applied.
3. The standard throttle device can be used without real-flow calibration.
4. The integrated orifice plate is simpler to install, no need for pressure pipe, and can be directly connected to differential pressure transmitter and pressure transmitter.
Rotor flowmeter product features
1. A flow meter most commonly used in industry and in laboratories.
2. Simple and intuitive structure, low pressure loss and easy maintenance.
3. It must be mounted on a vertically running pipe section and the fluid medium passes through the rotameter from bottom to top.
Turbine Flowmeter Features
1. Strong anti-impurity ability.
2. Strong anti-electromagnetic interference and anti-vibration ability.
3. Its structure and principle are simple and easy to repair.
4. There is almost no pressure loss, saving power and power consumption.
Electromagnetic flowmeter product features
1. Two-way measurement system.
2. The sensor requires a straight pipe length that is 5 times the length of the pipe.
3. Low pressure loss
4. Measurement is not affected by changes in fluid density, viscosity, temperature, pressure and conductivity
5. Mainly used in sewage treatment.
Vortex flowmeter product features
1. Simple structure, firm, no moving parts, high reliability and reliable long-term operation.
2. Easy to install and easy to maintain.
3. The detection sensor does not directly contact the measured medium, and the performance is stable and the service life is long.
4. The output is a pulse signal proportional to the flow rate, with no zero drift and high precision.
5. Wide measurement range with a range ratio of 1:10.
6. The pressure loss is small, the operating cost is low, and it is more energy-saving.
Mass flow meter product features
1. No mechanical transmission mechanism, small size, light weight, easy to maintain
2. High precision
3. No moving parts inside, good stability
4. Wide range ratio, much better than other traditional instruments
Target flowmeter product features
1. The whole instrument structure is solid and has no moving parts, plug-in structure, easy to disassemble
2. The dry calibration method can be used on the spot, that is, the weight hanging method is adopted.
3. With integrated temperature, pressure compensation, direct output quality or standard
4. The flow block (target piece) can be replaced according to actual needs to change the range.
5. Strong anti-vibration, pulsating flow can be measured within a certain range.
Source: 10 major flowmeter dynamic schematics and features
