Atmel® Corporation has launched the AVR®32 ATEVK1105 Digital Audio Gateway Development Kit, which demonstrates digital audio streaming, decoding and playback. These audio capabilities target the explosively growing market of audio accessories and peripherals that are leading the digital age of home and in-vehicle Hi-Fi audio systems, including the popular iPod® docking station. Based on AVR's high-performance 32-bit flash microcontroller AT32UC3A, the development kit provides developers with a ready-to-use hardware/software platform, interfaces and evaluation capabilities to meet their audio systems. Demand and speed up time to market.
This article refers to the address: http://
A fast AVR32 CPU with DSP instructions is ideal for audio decoding tasks, while a UC3A device can handle two audio interfaces. For high-quality stereo output, the chip integrates a stereo 16-bit bitstream audio DAC with built-in FIR and Comb filters; for 4-channel or full surround sound, the IIS interface can be used to connect to an external audio codec. Both interfaces are supported by drives that utilize the AVR32 peripheral DMA controller, which significantly reduces CPU overhead.
The ATEVK1105 board is preloaded with software for demonstrating audio playback, while the booted kit scans MP3 or other audio files from all USB storage devices for playback. The kit's software even scans ID3 tags and displays album singer and song information on a 2-inch QVGA onboard display. Since MP3 decoding of USB storage devices requires only one-third of the AVR32 processing power, a large amount of processing power can be used to run the operating system, transfer data, and refresh the display.
Customers with an Apple® license can connect the kit to an iPod or iPhone® using an Apple-certified chip adapter.
Designed for high data throughput applications, the AVR32 microcontroller is equipped with dual port SRAM, a 6-layer data bus and a multi-channel peripheral DMA controller to help speed. This feature is required if the UC3A has a 100 Mb/s Ethernet port, a 12 Mb/s USB port, two 33Mb/s SPI ports, four high-speed USARTs, one IIS interface, and two I2C-compatible interfaces. of. The USB port has an On-The-Go host function that acts as a host when connecting USB devices such as keyboard, mouse, memory or audio.
For applications with on-chip 512 KB flash and 64 KB SRAM, the EVK1105 demonstrates how to connect an external SDRAM, serial DataFlash, SD card reader, and USB hard drive or memory stick.
The ATEVK1105 is also equipped with connectors for future wireless expansion modules that support IEE802.15.4TM/Zigbee® and Bluetooth.
Supply and price
Atmel provides all source code free of charge, including software drivers for all peripherals, TCP/IP stacks, and various USB-like drivers. These source code is available from the AVR32 Software Framework, a software library integrated with the AVR32 Studio development kit. Atmel also publishes schematics and Gerber files that allow customers to easily integrate components in their toolkits in their own designs.
Atmel's distributors have been offering the ATEVK1105 Digital Audio Gateway Development Kit since March 2009 for $179.

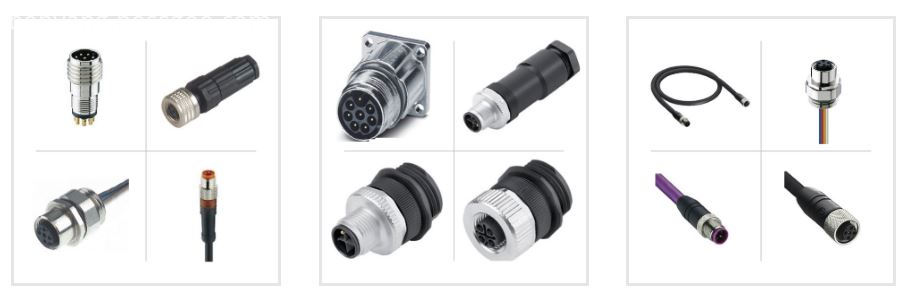

Circular Automation Connectors
