[PConline Review] On April 6, 2011, LG Electronics (China) held a new product launch event in Shanghai on the theme of “LG Smart Lifeâ€, which includes TV, mobile phones, washing machines, refrigerators and other full-line home appliances and digital products. A variety of new products unveiled, and among the most notable is the LW6500, which uses a polarization-type principle of non-flash full HD smart 3D TV. Recently, application downloads (Apps) are available, TruMotion 200Hz speed drive is used, and the intelligent 3D TV LW6500 equipped with the Wahite network platform has arrived at the PConline evaluation room. It is not too late. Let's take a look at its evaluation performance.
Product Model:LG 47LW6500-CA
Reference price: 13999 yuan (gift two pairs of 3D glasses)
First, LG 47LW6500-CA first evaluation after the test
LG LW6500 integrates "smart TV" and "non-flash full HD 3D" technology in one, using LED backlight and fast 200Hz speed drive, provides a rich application download (LG App), has DLNA home entertainment network function In addition, together with Hua Digital Media, we have created a network platform that can realize a wide range of video on demand, including movies, TV dramas, entertaining variety shows, and sports programs.
LG 47LW6500-CA Picture Series Evaluation Forum Quote Online shopping Nett
When it comes to "blocking 3D dead ends," many netizens will ask questions. What does this mean? The author explains here, because the LG LW6500 uses a polarized 3D principle, but also with a "no flash full HD 3D" technology, unlike the shutter 3D TV must be "right" to watch, LW6500 can be in the TV The front of the machine chooses to watch TV in a variety of comfortable postures, and even when lying down, it can get clear 3D images from the LW6500.
You can also see a clear 3D picture by lying on the LW6500
-------------------------------------------------- ---------------------------
If you want to learn more about 3D technology, please click the following link:
Three-dimensional is the king! The current mainstream 3D display technology introduced
Http://family.pconline.com.cn/lcd/guides/1103/2357648.html
-------------------------------------------------- ---------------------------
Compared to the LX6500 introduced last year, the LW6500 series has been upgraded in many ways. For example, the LW6500 can download applications, add the number of Wah Internet TV features, and realize the transition of 2D-3D images, but the 3D principle adopted by both. In contrast, the LW6500 uses a non-flashing polarized light principle to provide a wide 3D viewing angle.
From the LW6500's location and price point of view, its potential competitors include the Sharp LX830, Samsung D7000, etc., LG LW6500 smart applications such as application download, network number, and not flash full HD 3D technology has a significant influence.
Image quality performance, 3D effect, and network function are the focus of this evaluation. The author will evaluate 3D effect reviews, peer-to-peer, grayscale levels, color performance, dynamic contrast, high-definition video, USB video, and power consumption comparison. The picture effect is for reference only, the following immediately enters the evaluation article. >>
-------------------------------------------------- ---------------------------
If you want to learn more about LG 3D TV's evaluation articles, please click the following link:
Entry-level performance! LG's first 3D LCD TV LX6500 first test
Http://family.pconline.com.cn/lcd/reviews/1007/2167095.html
The strongest 3D flagship! LG ultra-thin 400Hz TV LX9500 Reviews
Http://family.pconline.com.cn/lcd/reviews/1008/2185471.html
-------------------------------------------------- ---------------------------
Second, LG 47LW6500-CA Appearance Appreciation
LW6500 does not use ultra-narrow frame like LX9500, but rather a more generous shape, black main color outline clear, front panel is covered with a layer of acrylic glass panel, calm and unconventional, visual effects are good.
LG 47LW6500-CA Picture Series Evaluation Forum Quote Online shopping Nett
LW6500 series uses a transparent crystal edge around the body, looks crystal clear, bringing a stylish atmosphere. There are no signs in the upper left and lower right corners, which are rather concise. The LW6500 is equipped with a working indicator in the lower right corner of the screen. When working, it emits a lavender glow with a hint of mystery.
LG 47LW6500-CA border details
LG 47LW6500-CA border details
LW6500 uses a white spray LOGO, it is very prominent on the bottom border of the black screen. The LW6500 series adopts a rectangular design. The surface is also covered with transparent plexiglass. The base can be rotated horizontally for a certain angle to facilitate the user's viewing needs.
LG 47LW6500-CA White Spray LOGO
LG 47LW6500-CA Square Base
The LW6500 uses a touch OSD, located in the lower right corner of the fuselage panel, including channel controls, volume adjustments, confirmations, menus, input selections, power, and more. When a finger is touched, the white operation indicator lights up automatically. , After a few seconds to stop touching, the indicator will automatically turn off.
LG 47LW6500-CA Touch OSD
From the following figure we can see that the 47LW6500 is still doing a good job in thickness control, which is far less than an ordinary IC card. The advantage of the side-mounted LED backlight is vividly demonstrated.
LG 47LW6500-CA is relatively thin
The back of the LW6500 is regular and concise, with three large cooling holes on the upper part to ensure its cooling effect. The interface area is on the right side of the fuselage and is arranged in an inverted “L†shape. It is divided into the side interface area and the back side. Set the main interface area.
Rear View of LG 47LW6500-CA
LG 47LW6500-CA body nameplate is located in the lower left corner of the back, which identifies the detailed model of this LCD TV. The manufacturer is Nanjing LG Xingang Display Co., Ltd. The product serial number and production date are also indicated, but the 47LW6500 is not specified Power consumption.
LG 47LW6500-CA body nameplate
The interface area on the back of the LW6500 is equipped with a set of RS-232 interfaces, a set of color-difference interfaces, and a set of AV interfaces, all of which are arranged vertically.
LG 47LW6500-CA Rear Interface Area
The side interface area has a CAM card slot, two USB ports, and four HDMI high-definition video interfaces. The lower interface zone is configured with one LAN port, one RGB port, one audio port, and one fiber port. A set of wired and antenna interfaces.
LG 47LW6500-CA Side Interface Area
LG 47LW6500-CA lower interface area
The LW6500 series remote controller has not changed much compared with the previous ones. It has extended the classic large button mode, and will not produce inadvertent touches when used. It feels good. It is reported that the LW9500 series is also equipped with game controller remote controller, but unfortunately the LW6500 is not configured.
LG 47LW6500-CA Remote Control
The overall appearance of the LG 47LW6500-CA is relatively tough. The frame is covered with transparent plexiglass. It is crystal clear and stylish, the base can be rotated, and the interface configuration is quite rich. It can well meet the needs of general home users. >>
Third, LG 47LW6500-CA menu layout
LG LW6500 not only has a key to enter the smart TV interface of the convenient design, but also specifically for the smart TV's main interface for the simplification and optimization, its reasonable function layout and iconic function menu, so that smart TV operating system looks simple And intuitive, users can operate more handy.
LG 47LW6500-CA Main Menu Interface
LG 47LW6500-CA image setting menu parameter adjustment is very rich, including screen ratio, screen wizard, energy saving mode, screen mode, TruMotion and other project settings.
LG 47LW6500-CA Image Adjustment Menu
In the advanced settings of image settings, LW6500 can be used to personalize the dynamic contrast, dynamic color, Clear White, skin color, noise reduction, Super Resolution, Gamma and other items. The function of this part is familiar with LCD TVs, It is very practical for the user to have a high screen effect.
LG 47LW6500-CA Advanced Image Settings
The LG 47LW6500-CA sound setup menu provides a selection of commonly used volume controls, sound modes, etc. The most prominent of these is LG's unique Hyun Liang Voice II function. In addition, treble and bass intensity can be adjusted here.
LG 47LW6500-CA Sound Settings Menu
The LW6500 series offers up to 8 picture modes including smart sensor, bright, standard, movie, sports, games, professional 1, professional 2, and more. Due to space limitations, the author chose the standard, bright, and three modes of filming for comparison.
LG 47LW6500-CA Standard Image Mode
LG 47LW6500-CA Bright (Left) Movie (Right) Image Mode
Fourth, LG 47LW6500-CA point to point test
During the peer-to-peer test, the PC used by the author was the Lenovo ThinkPad SL400 series, and the signal was input to the TV through the HDMI interface. First set the PC resolution to 1920×1080, and the refresh rate is 50Hz. Then set the 47LW6500 ratio to “Point-to-Point Scan†in the menu. The LG 47LW6500-CA full HD point-to-point is presented to the author. From the point of view of the actual display effect, 47LW6500 text strokes clear, full HD point-to-point effect is satisfactory.
LG 47LW6500-CA Full HD Point-to-Point Effect
In the Monoscope Full HD 1080p signal test, the LG 47LW6500-CA performs well on horizontal, vertical, oblique, and circular lines, and can be clearly identified on the 1080p line. The overall performance is good.
LG 47LW6500-CA Full HD Point-to-Point Effect
The following is a close-up view of the LG 47LW6500-CA's LCD panel. From the pixel shape, the white, red, blue, and green colors are arranged in a typical “>>>†arrangement. This is a typical LG Display production. - Pixel shape of the IPS hard screen.
LG 47LW6500-CA panel pixel close up
LG 47LW6500-CA has a key to enter the smart TV interface and convenient design, the menu is simple and clear, simple and convenient operation, advanced image settings provide a wealth of details of the adjustment options, can be personalized adjustment, 47LW6500 can achieve full HD point-to-point, the effect is Satisfied, the LCD screen adopts S-IPS hard screen produced by LG Display. >>
Five, LG 47LW6500-CA does not flash 3D principle analysis
At present, there are many ways to realize 3D video viewing, which can be mainly classified into naked-eye type and glasses type, among which the naked-eye type raster display method and holographic display method are difficult to achieve, and it is expensive and hard to popularize. Spectacle type is divided into color separation method, light division method, time division method and other technologies, color separation method is the earliest and cheapest 3D technology, but easy to cause color cast, 3D effect is also the worst; light division method that is high school textbook introduction The polarizing 3D technology is better than the color separation method, but the screen is difficult to achieve full HD resolution, brightness is relatively low; time division method, also known as active shutter 3D technology, has the advantage of not affecting the picture effect, the disadvantage is that the glasses are heavy And the price is expensive and some of the screen will have a flicker.
3D image imaging principle
Different from traditional shutter 3D TVs, LW6500's "Flashless Full HD 3D" technology utilizes high-precision panel film technology. Through the principle of polarized light, the left eye and the right eye each see the best image. It not only makes the 3D image quality clearer, brighter and more realistic, but also avoids the problem of flickering and ghosting in 3D images.
Polarized 3D left and right screen enters left and right eyes at the same time
The 3D glasses that are compatible with the LW6500 need no power supply and do not need a signal receiving system. Therefore, they are lighter and more comfortable to wear, and do not give the user a negative feeling. And, its price is also closer to the public, so that we can easily have more 3D glasses, you can share the wonderful 3D vision with your family.
LW6500 3D glasses do not need power
The LG LW6500 adopts the polarized 3D principle, which has the characteristics of no flicker, no ghosting, etc. In addition, it also gives the user a more comfortable viewing experience and can see the 3D picture even when lying on the sofa. The LW6500's glasses are cheap, light weight, and comfortable to wear. >>
Six, LG 47LW6500-CA does not flash 3D screen effect
One of the great features of the LG 47LW6500-CA is "do not flash Full HD 3D". How does the 3D effect behave in the end? Below we look at the screen shots. In order to allow users to experience the difference between 3D images and 2D images more intuitively, the authors used the naked eye and the 3D glasses to perform screen captures. In the naked eye, we see 3D images with ghost images. The picture taken through the 3D glasses is a 2D image. By comparing the two, we can still find many differences and the general effect of 3D images.
LG 47LW6500 "do not flash full HD 3D" effect?
The first is depth of field and crosstalk (Crosstalk). From the following 3D screens and 2D images captured through glasses, the depth of field of the LW6500 is still relatively clear, and the crosstalk is very good, and crosstalk is hardly noticeable. phenomenon.
3D effect of LG 47LW6500 (naked eye shot)
3D effect of LG 47LW6500 (photographed through glasses)
Followed by the screen brightness, wear 3D glasses to watch, 47LW6500 screen brightness and no significant drop, the overall picture is clear and bright, the level of effect can be better shown.
3D effect of LG 47LW6500 (naked eye shot)
3D effect of LG 47LW6500 (photographed through glasses)
The last is the screen color, according to the author's actual experience, LG 47LW6500's color performance is relatively bright and full, but is limited to LCD TV display principle, to improve the brightness of the viewing screen, the screen style will be slightly white biased effect.
3D effect of LG 47LW6500 (naked eye shot)
3D effect of LG 47LW6500 (photographed through glasses)
In addition, it is necessary to mention that the LG 47LW6500 supports 2D to 3D functions. Even ordinary 2D video can be converted into 3D images in real time, which breaks through the limitation that only 3D sources can watch 3D TVs. Although the stereoscopic effect of the converted 3D image is inferior to native 3D, this function is still quite practical, which greatly reduces the problems caused by the shortage of 3D film sources.
2D to 3D Image of LG 47LW6500 (Open Shot)
2D to 3D picture of LG 47LW6500 (photographed through glasses)
Compared with the traditional 3D TVs that must be “sitting side by side†to watch, the LW6500's “Not Flash Full HD 3D†also gives users a more free viewing experience. Users can choose to watch TV in various comfortable postures. You can get clear 3D images from the LW6500 even when lying down.
3D glasses rotate about 45° counterclockwise (simulating left to watch)
3D glasses rotate clockwise by about 75° (simulating to the right)
In terms of angle, the advantages of the LW6500 are very obvious. The brightness of the 3D screen will not be attenuated with the change of the angle. The following will be experienced through a dynamic picture of glasses from 0° to 90°.
LG LW6500's 3D screen brightness does not dim due to viewing angle changes
Due to the polarized 3D principle, the 3D picture displayed by the LW6500 has almost no ghosting and crosstalk. After wearing glasses, it still has a higher picture brightness, and the angle advantage is even more pronounced. View 3D images from an angle. >>
Seven, LG 47LW6500-CA grayscale, black and white contrast test
Since the screen shot has undergone the necessary software processing and is affected by the actual effect of the netizens' display, the screen displayed on the screen will eventually differ from the actual effect of the TV. Therefore, the actual effect is based on the author's text description. The author used a Hi-Definition Reference Disc to test the disc. The digital camera used was a Canon 50D. The lens used a Canon EF-S 18-200mm f/3.5-5.6 IS.
The first test was a 15-gradient grayscale test. From the actual picture, the LG 47LW6500-CA LCD TV performed satisfactorily, and it was easy to distinguish each gray level difference between 0 and 1, 14 and 15 gray levels. Are very obvious.
LG 47LW6500-CA Grayscale Comparison Test
In the black gray-scale latitude test, charcoal's line stripe road can be clearly seen in the charcoal backlight position; in the charcoal's light position, charcoal texture can be well represented. In terms of noise control, the LG 47LW6500-CA does a good job, and the picture noise is not obvious.
LG 47LW6500-CA Black Latitude Test
In the black-and-white contrast test, the outline of the black girl's clothes is clearly displayed on the black background board, the white clothes girl's outline on the white background board and the hair details on the black background board are clearly shown.
LG 47LW6500-CA black and white contrast test
LG 47LW6500-CA black and white contrast test
Eight, LG 47LW6500-CA color performance test
First of all, we use DisplayX to perform full color gamut color overtesting on the LG 47LW6500-CA. From the aspect of the picture, the transition between the colors is relatively smooth and there is no obvious sense of rush.
LG 47LW6500-CA Full Color Range Color Transition Test
In order to make everyone see the LG 47LW6500-CA's ability to express various colors more clearly, the author chose a screen containing a variety of colors of wool balls. From the screen shots, it can be seen that the 47LW6500 shows red and pink adhesion. The phenomenon is more obvious.
LG 47LW6500-CA color performance test
For the color performance of the TV, the color that is most difficult to accurately display is golden yellow. During the test, the LG 47LW6500-CA has a good performance for light blue, pink, and golden yellow, with accurate colors and clear lines.
LG 47LW6500-CA color performance test
LG 47LW6500-CA color performance test
The two girls with red, white, and yellow roses have accurate three-colored roses. However, the color of the skin on the girl's face is slightly different from that of the actual skin color. The LW6500 menu offers Gamma adjustment options. The user can make corresponding adjustments.
LG 47LW6500-CA color performance test
LG 47LW6500-CA color performance test
The LG 47LW6500-CA is able to clearly represent 15 gradient grayscales. The black and white contrast and black grayscale latitude show good performance and the overall color is dark. LW6500 full color gamut color transition effect is good, the color performance is good, the overall effect is satisfactory. >>
Nine, LG 47LW6500-CA dynamic screen test
In this part of the test, users are required to pay attention to the front window of the fast moving train and the body plate of the car. The author used the same ISO and aperture in the shooting process. The parameters are ISO-400 and F4.5. The time is 1/100 seconds. The LG 47LW6500-CA uses the fast 200Hz speed drive technology. During this evaluation process, the Trumotion motion picture is always adjusted to "high" image quality. Judging from the effect of the moving train, the phenomenon of ghosting in the front part of the train is relatively slight and the dynamic effect is satisfactory.
LG 47LW6500-CA dynamic picture test
In the high-definition video of a section of vehicles that is played below, we need to observe the car's license plate and the outline of the car body. The LG 47LW6500-CA can play more smoothly for the entire video, with slight ghosting on the license plate and vehicle contours.
LG 47LW6500-CA dynamic picture test
LG 47LW6500-CA dynamic picture test
Ten, LG 47LW6500-CA power comparison test
LG 47LW6500-CA uses LED backlight source, rated power consumption is 170W, compared to ordinary 47-inch CCFL LCD TV is very power-saving, and from the author's evaluation experience, the actual power consumption is lower than the rated power consumption A lot. The author uses the instantaneous power consumption test method, which is to measure the power consumption values ​​of the six screens of red, green, blue, white, black and color transitions in the standard mode.
LG 47LW6500-CA power consumption test
Judging from the results of actual testing, the LG 47LW6500-CA has the lowest power consumption for black screens in the standard image mode, only 35.61W, while the power consumption of other screens is maintained at about 124W, and the energy saving effect is ideal.
LG 47LW6500-CA uses a fast 200Hz speed drive technology, dynamic effects clear and clear, the overall picture is satisfactory. The power consumption of the 47LW6500 in the standard mode is only maintained between 35-127W, and the energy-saving effect is very good. >>
Eleventh, LG 47LW6500-CA HD video test
In the HD video test section, the author played the Dolby Blu-ray HD test disc and China Hualu Blu-ray Disc “Ip Man 2â€. The first is a video of animal activity on the African savannah of the Dolby Blu-ray Disc, with more moving pictures and details. The LG 47LW6500-CA performs accurate and clear hair color performances for African Leopards, but performs well for highlighting noise control.
LG 47LW6500-CA Blu-ray HD Video Test
LG 47LW6500-CA Blu-ray HD Video Test
Next is the action movie “Ip Man 2′′. The dynamic battle of the movie is more and there are more dark shadows. This is convenient for testing the dynamic effect and black sinking ability of the LG 47LW6500-CA.
LG 47LW6500-CA Blu-ray HD Video Test
LG 47LW6500-CA Blu-ray HD Video Test
Judging from the actual playback effect, the LG 47LW6500-CA has played the advantages of Blu-ray high-definition video, the performance of high-definition picture is ideal, the video playback is smooth, color reproduction is accurate, but some highlight images have noise. >>
Twelve, LG 47LW6500-CA intelligent function test
The LG 47LW6500-CA has both wired and wireless network access. This evaluation uses a wired network. Simply set the IP address in the network setup menu to connect to the network. The operation is quite simple.

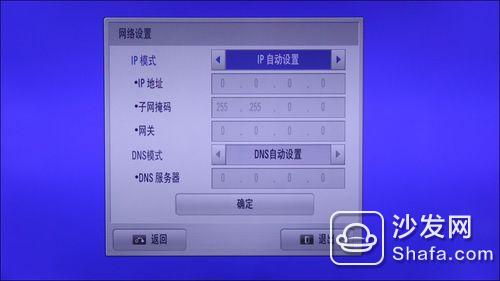

Connect to the network after simple setup
The 47LW6500 has an online platform jointly developed by LG and Hua Digital Media. It gathers a wealth of video-on-demand resources such as movies, TV dramas, entertaining variety shows, and sports programs, and can enjoy the latest cool movies without leaving home.
LG 47LW6500-CA China Internet TV Main Interface
Open the movie column and you will see a list of videos arranged vertically. After you click on the video you want to watch, there will be related information about the movie, including the title, synopsis, and starring.
LG 47LW6500-CA China Internet Video Related Information
The author chose "If You Are the One II". From the actual effect point of view, the picture quality is equivalent to an ordinary RMVB movie, but it also appears to be clear on the big screen. The author used the company's network of fiber-optic Internet access, but the time to enter the film was a little longer, and after the start of the broadcast, it was relatively smooth and there was no pause.
LG 47LW6500-CA movie online play (not full screen)
LG 47LW6500-CA movie online play effect
In addition to the powerful Internet video broadcasting function, the LW6500 series also provides news information on weather, current affairs, sports, weather, finance, and other aspects, allowing users to first understand the latest network information.
LG 47LW6500-CA weather forecast function
LG 47LW6500-CA News Interface
LG 47LW6500-CA financial information interface
The number of China Internet TV platforms also provides a variety of educational casual games. When watching movies, people are tired and play these online games. They do have the effect of eliminating mental and physical exhaustion.

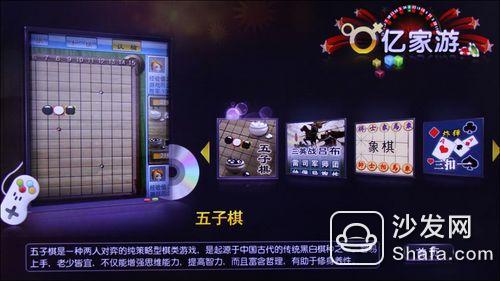

LG 47LW6500-CA online game interface
From the point of view of the LW6500 series Internet TV function, video content is rich, but the speed of reading video is slow, news, finance, weather and other information are very practical, and resources are updated more timely, online games improve the LW6500's entertainment performance. However, it is a pity that some intelligent functions of the LW6500 cannot be used. For example, the application download function is said to be available in June. >>
Thirteen, LG 47LW6500-CA streaming media function test
The LG 47LW6500-CA supports Divx HD streaming video playback and is compatible with many popular HD file formats. It also supports music and pictures.
LG 47LW6500-CA multimedia file browsing interface
Judging from the evaluation process, the 47LW6500 is capable of smoothing the 1080p Full HD TS format and 720p HD AVI format video in the hands of the author, but it cannot recognize the playback of the most common RMVB format in the network.
LG 47LW6500-CA 1080p Full HD TS Playback
LG 47LW6500-CA 1080p Full HD TS Playback
In terms of pictures, the LG 47LW6500-CA generates a preview image file, which supports playback in JPEG and MPO formats. From the evaluation process, the 47LW6500 reads images faster.
LG 47LW6500-CA HD picture playback
LG 47LW6500-CA HD picture playback
LG 47LW6500-CA supports MP3 and other formats of music playback, LW6500 series also lists the list of music files in the storage device, will not play a separate playback interface, but directly under the list of pop-up playback of basic information.
LG 47LW6500-CA music player interface
The 47LW6500's streaming media supports video playback in formats such as TS and MOV. Video and picture playback is satisfactory, and the music interface is straightforward and easy to operate. >>
XIV. PConline evaluation room summary
The LG 47LW6500-CA uses a polarized 3D principle, with a "No Flash Full HD 3D" technology, and also has a swift 200Hz speed drive. In addition, the LW6500 is also a smart TV, has a number of Internet TV platforms, can be on-demand online Watch HD videos and get the latest news.
LG 47LW6500-CA Picture Series Evaluation Forum Quote Online shopping Nett
After reading the above evaluation items, let's take a look at the two editors of the PConline Digital Home Appliances Channel who commented on the LG 47LW6500-CA smart flash 3D TV:
Through the detailed evaluation of the above multiple projects, PConline evaluation room's performance evaluation of the LG 47LW6500-CA is summarized as follows:
2, the menu layout is reasonable, rich and practical parameter settings;
3, HDMI can achieve multi-resolution full HD point-to-point;
4, the picture is more clear, black sinking ability is better;
5, the color performance is accurate, the color transition picture is smooth and transparent;
6, 3D screen does not flicker, high brightness, no crosstalk phenomenon;
7. The number of resources provided by Wah Internet TV is rich.
2. Some intelligent functions have not yet been opened.
The two biggest features of the LG 47LW6500-CA are "smart TV" and "non-flash full HD 3D", which can achieve VOD on demand and information acquisition. The streaming media playback function enhances practical performance. The 3L picture of the 47LW6500 has high brightness and no flicker. Even if it is lying down, you can see 3D images. The glasses are light and the price is cheap. It is believed that the LW6500 will set off a greater competition in the “smart 3D†market this year. [Back to Channel Home]
