[PConline evaluation] is undoubtedly the most recent non-public GTX1080Ti graphics card exposure peak, each product followed, after the last non-public GTX1080Ti first test, the author received a video from MSI GTX1080Ti Gaming X 11G graphics, together See how this new game card king chip is taught in MSI?
MSI GTX 1080TI GAMING X Reference Price: Loading... Image Reviews Quote Parameter Overview
Heritage red dragon design, RGB lighting effect adjustable APP, quote 5999
In terms of appearance, the MSI GTX1080Ti Gaming X 11G inherits the classic red dragon design, and the red and black diffuser caps match the dragon-like LED lights to make the entire card look rather atmospheric, and the surface of the shroud is skin-like material. Good touch.
The cooling holes on the back panel also interpret the style of the red dragon, which is similar to the dragon scale. On the right side, an oversized MSI dragon logo is printed, making the entire product self-contained.
The whole card size is 277 x 135 x 50mm, which belongs to a shorter length (shorter than the conventional three-fan graphics card) and a thicker product (occupies two slots). At first glance, it looks quite thick, and the number of internal fins is evident.
External power supply is 8+8Pin, 2Pin more than the public version, one look is for overclocking!
Interestingly, the video output interface, which is not limited to the same AIO, has a DVI interface (public version is not available). In addition, it also has two DP interfaces and two HDMI interfaces. MSI here to change one of the DP interfaces to HDMI should be considered in support of more VR devices, very intimate!
After the machine is on, the dragon scale LED on the front of the shroud will light up. Unfortunately, the lights here do not support RGB, but they can adjust the lighting mode (such as breathing, constant light mode, etc.).
Through the MSI GAMING APP can be a variety of custom lighting effects of the product LED lighter to meet the individual needs of the user; the logo lamp at the top of the graphics card is RGB, the next motion picture, kind of grass.
how about it? Okay? In addition, it is worth mentioning that MSI GAMING APP also has a mobile version, which can be downloaded by searching in the AppStore. Users can control the video card through a mobile phone or tablet without having to switch from the game to the Windows desktop for further operation. .
MSI GTX1080Ti Gaming X 11G Specification Comparison
Specifications: Specifications, the MSI GTX1080Ti Gaming X 11G and the public version of the biggest difference in the core frequency and external power supply, but the core frequency of the machine is relatively conservative, only 1544-1658MHz (Gaming mode on the machine, the user Can be adjusted to OC mode to achieve the best performance as needed); However, I believe that the strength of this product should be far more than this, the frequency setting may be conservative for good shipping, so we will try to overclock!
The price, the official offer is 5999 yuan, 300 yuan more expensive than the public version; but note that friends of the graphics card should be found, the current price of all AIC non-public GTX1080Ti products are basically in 5999 yuan (the most expensive can go to 6 4 4 , such as the testes of Assos, laugh ~), so the price of 6K MSI GTX1080Ti Gaming X 11G is actually relatively cheap!
10-phase luxury power supply design, strong cooling, power overclockingThis card is slightly harder to remove because the screws are a bit more, Koko~
After removing it, you can see a super-heavy heat sink. The four 8mm pure copper heat pipes and the GPU copper base are welded together. The memory chips and the power supply module are also equipped with metal heat sinks, which are welded together with the fins. Heat can be quickly released.
With the unique design of MSI's patented blade front 4 fan, the combination of the two different blades, the drainage fan blade and the traditional fan blade, can increase air flow by 22% and is quieter than ordinary fans.
In addition, the MSI GTX1080Ti Gaming X 11G is equipped with a special PCB reinforcement bracket, in addition to strengthening the overall structure of the graphics card can also help memory cooling, it is a double benefit!
10 phase luxury power supply design, the fourth generation of military regulations materials, help overclocking!
The core code name is GP102-350-K1 A1. The GDDR5X memory chips of Magnesium have a single capacity of 1GB and a total of 11 cards. The 11G memory capacity, the 512Bit memory bandwidth, and the 502GB/s bandwidth are just touching!
Then look at the performance test!
3DMark Theory Test and Game Performance TestNVIDIA GTX 1080Ti
NVIDIA GTX TITAN X
NVIDIA GTX 1080
NVIDIA GTX 980Ti
AMD R9 Fury X
AMD Crimson Edition 17.3.3
Test Platform Description: The test platform is a mainstream consumer platform Z270+i7 7700K. A total of six graphics cards were selected for comparison testing. The driver is the latest A/N graphics driver. (In order to optimize the table, the MSI GTX1080Ti Gaming X 11G in the table below is referred to as MSI GTX1080Ti.)
3DMark theory testIn addition to the two FireStrike Ultra & Extreme tests that we commonly use, 3DMark Theory Test adds 3DMark's latest DirectX 12 benchmark for game PCs, Time Spy, to provide a more comprehensive reference for everyone.
Theoretical test summary: Although the machine frequency is not too high, but it is not bad to get up and running, 3DMark theoretical performance on the basis of the public version of the 6% or so increase; it seems that the frequency of operation is not low Boost, which may be followed The luxurious power design is related to strong heat dissipation.

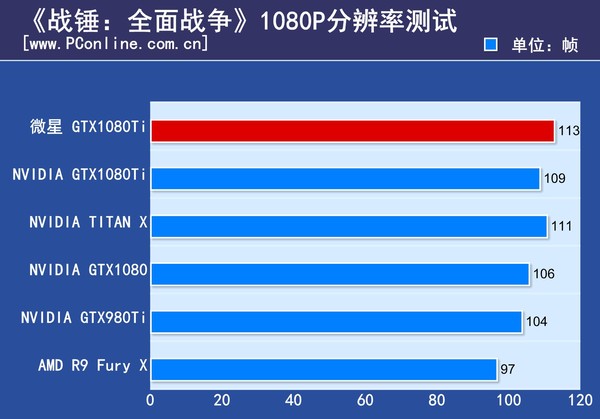

Game performance testThe future is undoubtedly the world of DX12. In this test, we selected six representative DX12 game masterpieces. Among them, there are many native killer 6s, Tomb Raider 10, and Singularity Ashes. Warhammer: Total War, Outbreak: Human Break, and the latest Ghost Action: Wilderness.
Test summary: The actual game experience is also beyond the public version of the GTX1080Ti and TITAN X posture, in a lot of games 4K special effects are still fully performed in the case of performance, 1080P is not to mention; the overall performance of the game performance and running points performance is quite , so far the author looks forward to the next overclocking!

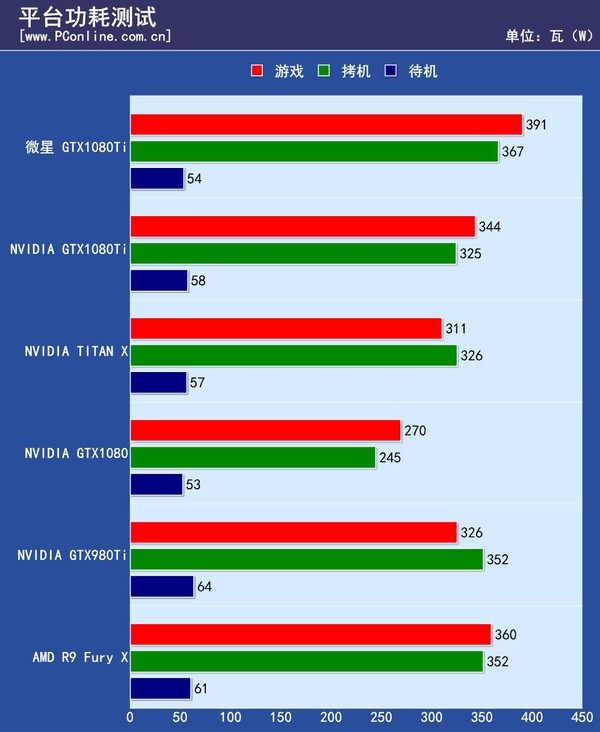

Platform power testIn order to get closer to real-life scenarios in the player's daily applications and to more fully understand the power consumption of the MSI GTX1080Ti Gaming X 11G, we will use three scenarios to measure the power consumption of the platform, namely, 3DMark stress tester and games. Copy machine and standby mode.
Power consumption test summary: As a non-public version, the power consumption of the MSI GTX1080Ti Gaming X 11G is generally higher than the 40-50W of the public version, and the standby frequency is comparable to the public version. In general, a 600W or more power supply is not suitable for it. problem.
Video card temperature testTo test the temperature limit under the radiator, we used the 3DMark stress test to test.
Test summary: At room temperature 26 °C, MSI GTX1080Ti Gaming X 11G's highest temperature is 69 °C, 15 °C lower than the public version of the radiator; temperature control to force, it seems MSI's thermal design is really not covered!
Card noise testHere we measure the fan noise when the noise test card runs 3DMark stress test at full load.
Test summary: Only 52.5 decibels when the pager hits, it is close to the volume of ordinary soft-spoken conversations. It is very quiet. In general, this heat sink achieves both low temperature and low noise!
About noise:
0 - 20 db: very quiet, almost imperceptible; 20 -40 db: quiet, like whisper; 40 - 60 db: normal general indoor conversation; 60 - 70 db: noisy: denervated; 70 -90 db: Very noisy, nerve cells are damaged. 90 - 100 db: Intensified noise, impaired hearing; 100 - 120 db: Unbearable, one minute or temporary deafness. 120 decibels or more: Extremely paralysed or fully paralyzed; 300 decibels or more: People with a radius of 20 km cannot repair deafness.
How conservative is the machine frequency? How can it not be super-superior?
After pulling the Fan Speed, Temp.Limit, and Power Limit to the maximum, the author pulled the core frequency and memory frequency up by 100MHz and 1200MHz respectively. Then he ran a 3DMark round and got the following results.
After overclocking, the 3DMark running points of the MSI GTX1080Ti Gaming X 11G are: 7750 (Ultra), 15531 (Extreme), and 10819 (Time Spy); maybe people think this is not intuitive enough, it does not matter, we come to a percentage chart comparison Correct.
As shown in the figure, after the overclocking, the number of points was increased by 8 points. The author only took a little oversight. I believe that you should have no problem if you raise the 10 points after careful play.
PConline graphics ladder diagram
Ladder Diagram Description: There is no doubt that the MSI GTX1080Ti Gaming X 11G is on the public version of GTX1080Ti and TITAN X.
PConline evaluation room summary
MSI GTX 1080TI GAMING X Reference Price: Loading... Image Reviews Quote Parameter Overview
In general, this card is a good card! Although the frequency when the machine is slightly conservative, but the potential for overclocking is large, basically pulling a 100MHz easy thing, it is estimated that the core constitution is not bad. And heat dissipation is quite awesome. The machine is at 69°C and the noise is still low!
The materials are also given in place, 10 phase power supply, 4 generations of military regulations and materials; there are some small details to get very good, such as retaining the DVI interface, changing a DP interface to HDMI, and installing a PCB reinforcement Brackets and so on.
Performance does not say, well-deserved game card emperor, the appearance of a LED light effect blessing is also quite high value, but also ingenuity made a mobile phone APP control, the price is currently reported 5999 yuan, whether you are cheap or expensive recently The non-public GTX1080Ti is also basically the price, in short, MSI GTX1080Ti Gaming X 11G for a public enthusiasts choice!
1, the performance of ultra-public version, overclocking potential powerful!
2, Blade 4 fan, luxurious heat dissipation design, low temperature control and noise
3, 10-phase luxury power supply, fourth-generation military regulations materials, help overclocking
4, cool RGB lighting effect, APP control, high value
5, 11G large memory, Fun 4K, VR no pressure
