Although the functions of various mobile phone tablets are rich enough at present, for the office, the notebook is still the author's first choice. Usually used by the company's allocative Thinkpad E40, although it is the lowest-end products, but the change of a solid-state hard drive, plus the memory, hard service for more than 4 years, the current win10 is still very smooth, it is estimated that fighting for 2 years is no problem.
The wife of the family used the old book of HP CQ32 and it was almost 3 or 4 years old. Before and after the double eleventh last year saw the Aunt push, into a 256G Toshiba Q300, replaced before and after New Year, and then on the 8G memory, performance is enough for daily use. I didn't expect the Q300 to hang up a few days ago. The hard disk was completely unable to read or write. Even the recognition couldn't be done. We had to contact a new one. Since I was on a business trip the next day, I didn't have time to wait for the return of the hard drive to the East. My wife, in turn, was inseparable from the computer, so I tossed my computer to my wife. Considering that the wife's book is too old and heavy to die, he moved on to buy a new computer.
Millet notebook is very attractive to me, but the high version has not been open for sale news, even if the sale, but also to grab ... ... recently burned by Xiaomi notebook Lenovo Xiaoxin is also within the scope of consideration, but for This kind of super-book with very limited scalability, individuals still don't like it very much. Both the number of interfaces and the hardware upgrade in the future will be greatly constrained. Pick and choose to finally see this Thinkpad New S2, be more in line with the author's aesthetic and requirements.
The 13.3-inch size is just enough for girls. At present, the configuration should also be enough, i5-6200U, 4G memory is more than enough for daily use. The 1080P resolution screen, although compatible with Win10, is still not perfect, but it can be used normally. 3 USB, HDMI, Onelink, Type-C, plus a card reader, this scalability is quite good. The only dissatisfaction is in its wonderful hard disk configuration. The 192G number does not know how it was generated. However, the follow-up can be upgraded anyway, this is not entangled. When I bought the price is 4999, when I saw Aunt Zhang's lowest time is about 4799, anyway, there is no way to use urgently.
One, out of the boxThe speed of Dogdong is still commendable. Before the business trip, the author is still on the way to a business trip, the computer has been sent to a business trip ... Let the courier waited for me for two days. Finally I received the product on the first day of my arrival.

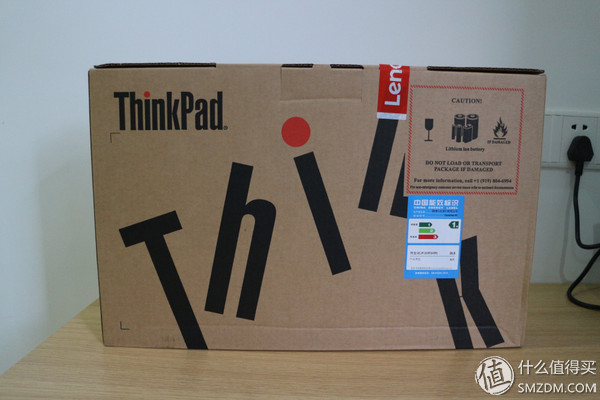

The packaging is very conventional and not much better. It has been criticized that the power cord is not fixed and shaking the box can clearly hear the sound of foreign objects. This experience is quite uncomfortable for the user.
Sealing paste and internal notebook plastic film are in the form of fragile stickers, do not know if there is a way to crack, but at least it should not look second-hand, be regarded as a psychological comfort.
Accessories only power adapter and power cord, this time the dog did not send anything, a little trick.
The power adapter is small, slightly longer than a box of cigarettes, and is portable. However, the thick and hard power cord is still not easy to carry, and the conscience of the US imperialists did not want to provide the same adapter as the macbook. If you want, buy it yourself, the official price of 199...
A surface is a metal material, feel good. However, in use, it is easy to leave traces of fingers, and it is easy to scratch and soft. The red dot of Thinkpad in the corner is, as always, the only bright spot on the A side.
The left side is the power supply, Onelink, USB and cooling vents. There is a power indicator next to the power connector, and the USB supports shutdown charging, which is a reasonable design. Onelink is Lenovo's own interface, and with Thinkpad's own docking station, it can implement many extension functions. However, the price of the docking station... you personally realized...
On the right are SD card readers, 3.5mm headphone jacks, dual USB, HDMI, Type-C, and notebook keyholes. Many expansion interfaces are the most important reason why I chose this product. However, Type-C does not seem to support charging, but it is also a good choice to expand the interface, at least better than Onelink.
There is no other interface between the back and the front, and the design is very simple. This is also in line with the author's aesthetic.
Like to see the thickness contrast. This is only a little more than a rough, the bottom of the rubber protrusions contribute a lot of thickness, so in fact this product is still relatively thin.
The B side adopts a matte screen, and the traditional border design makes it less attractive than the integrated IPS hard screen such as the millet notebook. However, I prefer this design. Hard-screen reflection will seriously affect the use of the experience, but that the matt screen is more adaptable. Although the narrow frame looks good, I still worry about its structural strength. On the contrary, such a traditional frame is more reliable.
The upper part is a camera and an array microphone. How many pixels do not remember, array microphone effect did not test, anyway, never use...
Lenovo's logo in the corner is very low-key, but if it were replaced with Thinkpad, it would be like a higher point.
The maximum opening angle is 180 degrees, which is suitable for expanding more use scenes. It is also the standard that the author chooses for the notebook.
The gap at the edge of the screen is not obvious, but there is definitely a design flaw. Many online users reflect this gap is very large, I also tried to use laps can easily insert, long time do not know will not enter the gray.
C surface design does not have too many features, the red dot has reservations, but the touchpad part has completely failed to find the feeling of Thinkpad. The keyboard is not backlit. This is still a shame. Although not much used at ordinary times, the backlit keyboard is really a function that can greatly improve the user experience.
The depressed red dot, though less comfortable, is more tolerant to users. Floating island keyboard, typing comfort is better, after all, this is Thinkpad's housekeeping ability, but the levitation height is too high, there must be risk of entering the ash.
The large touchpad, with multi-fingered Win10 operation, skilled experience is still very good, and finally able to barely catch up with the feeling of the macbook. But how to see the top three silver buttons how awkward, never to find the Thinkpad once again ... ...
The power button is definitely a big mistake for this machine. The key process is very long, there is no obvious feedback, the soft feeling often makes people wonder if it is pressed. The middle dot is just a decoration. The author was naive to think that it was an indicator...
Another failure on the C side is the design of the arrow keys, PgUp, and PgDn. The buttons are too close to each other, and the design is not as high and low as the previous Thinkpad. Frequent inadvertent use during the process, the egg hurts...
The D surface is evenly distributed with many heat dissipation holes. The upper two are the memory cooling windows. The longest is the position of the solid state hard disk and the heat pipe, and the side is the fan position. It should be said that the design of the D surface is not a good look, but it is still quite satisfactory.
The speaker outlet design is on both sides, and the sound quality is the degree to which it can be heard. After all, it cannot be asked to be too high.
Second, hardware performanceFor such a super mobile with a main mobile office, excessively high hardware performance is completely rogue. The simple Master Lu ran about a minute. Take a look at the basic configuration first.
The basic configuration is sufficient, and there is still a little distance to use.
This score is basically able to meet the daily use, but also relatively smooth, follow-up to upgrade the memory and hard drive, the score can increase some.
SSD's score is not high, writing and 4K are a bit miserable, this is a bit disappointing, but in any case is also to be replaced, it does not matter.
USB3.0 speed is pretty good, stable at 100MB/second or so, enough to use just fine.
Third, internal dismantling
Select this book is also fancy the potential of its subsequent upgrade, although the CPU performance is basically fixed, want to replace it is more difficult, but at least memory and hard disk can still be upgraded. Take a look at the internal structure first.
Standard Phillips screws for easy removal. There are 6 screws exposed on the D surface.
There are 3 under the front of the three rubber plugs, a total of 9 screws. It is worth mentioning that the screw and the housing are integrated, so there is no need to worry about the problem that the screws will be lost after removal.
Here also to point out that these three rubber plugs are difficult to remove, try to use a toothpick as a tool with low hardness. The author used metal tweezers and did not expect to accidentally leave a scratch on the plastic D surface.
Remove the screws and use a wand to pry open along the perimeter. The dismantling process is a bit more complicated than the block design on the back of the Thinkpad, but the whole process is actually very simple.
First look at the whole picture, although it does not expect it to be as beautiful as a macbook, but this internal is still relatively messy. Compared to the previous Thinkpad, it seems to have fallen, and price positioning has determined everything.
With such a small book, there is still such a big gap in the interior, which is a pity. If you add a touch fingerprint module like Lenovo's new one in this position, it would be nice.
There is still an empty cable tray under the hard disk. I don't know what to do. It would be nice if I could replace the backlit keyboard.
Two memory slots, the original is a Samsung 4G sliver, insert a 4G or 8G later, no longer need to upgrade.
The hard disk is also Samsung's, M.2 interface, 2280's, 192G's wonderful capacity ... first used by his wife, back time to change the block 512G just fine. However, thanks to Toshiba's lesson, SSDs are still not the storage of important data, and external hard drives or NAS backups are the most reliable.
LG's battery, 3575mAh, 11.4V, this battery is almost enough to use about 5 hours. The intermittent use of regular offices is almost as close to a day's use, and it's not bad.
Close-up part of the shaft, the shaft seems to be half metal half plastic, the sound of the two parts are not the same, I hope there will be no broken door incident. Next to the shaft is the wireless module, Intel's solution.
Simple dismantling, the rest will not be in-depth, after all, the upgrade will be almost here, the keyboard screen and other parts are still problems and then take it.
to sum up:For this product, the 4999 price position is a golden spot. Just stuck in the five thousand, but at the same time there is a Xiaomi notebook to help stir the hot topic. Compared to a newcomer to the industry, many people are more willing to choose to trust the products of the old company Thinkpad. Although the S series is only the low-end series of Thinkpad, the same price configuration is much worse than the Xiaomi notebook, compared to Lenovo's small new is also a difference, but the Thinkpad's aura and rich expansion enough to make up for the above advantages. In addition, Xiaomi notebooks and Lenovo Xiaoxin have adopted a unique design. The author really does not understand the significance of the super thin lighter. The performance cannot be significantly better than the set, and it is not as good as the set heat. It is not as good as such a balance. The products come more real. Maybe this product is not suitable for young rice, but it is quite suitable for newcomers entering the workplace.
Finally come the conventions to summarize the advantages and disadvantages.
advantage:
1) A surface metal material, texture is good. However, the hardness does not seem very high, the surface has left a scratch.
2) Thin and light, for people accustomed to the E40, this product is really much lighter.
3) Rich interfaces and great potential for upgrading.
Disadvantages:
1) In addition to the fact that the A side is all plastic, there is a bit of meaning in it.
2) General workmanship. Corner seams on the screen are not well handled and gaps are prone to occur. Power button does not feel.
3) Extraordinary hard disk capacity, a bit behind the hard disk speed.
