IT168 evaluation With the release of GTX1050/1050TI, the product line of NVIDIA Ten Series graphics cards is finally completed. There are GTX1080/1070 on the high-end market of 5,000 yuan and 3,000 yuan, respectively, and GTX1060 has a mid-range market of 2,000 yuan, while the GTX1050/1050TI will be a real dessert card for entering the thousand yuan market. On the eve of the lifting of the ban, we received iGame GTX1050TI from Rainbow. This is the first time we have brought this video card out of the box and dismantled it. Beijing time On October 25, 2016, NVIDIA finally lifted the GTX1050/1050TI. It must have been a long-awaited performance for us. Here we will enter the evaluation section to learn more about this colorful iGame GTX1050TI.
Tips: In order to facilitate everyone to read the evaluation articles, Xiao Bian specially set the page jump link, click on the picture below to jump to the relevant evaluation link ~
Appearance: red and black color matching + dual fan overall more rounded
The colorful iGame GTX1050TI has changed its appearance to a tough style. The outer side of the shroud is cut along the fan and the whole looks more rounded. The front uses a classic red and black color, a large area of ​​black complemented with red embellishment, it is beautiful.
The back of the card uses a metal backplane design with a pattern of explosive debris printed on the backplane, which is also a red and black color scheme. The backplanes that are common on high-end graphics cards have also changed their approach to people in recent years. Backplanes have gradually appeared on mid-to-low-end graphics cards. Speaking of the usefulness of the backplane, everyone may think of it as a good-looking, B-cell, in addition, it can also play a role in strengthening the PCB, dust, heat dissipation.
Video output interface from left to right Displayport 1.4, HDMI 2.0b, DVI-D, compared to their own big brother 1050TI reduced two DP1.4 interface. In the upper left corner is the iconic one-button overclocking button.
The length of the graphics card is controlled at 23cm, which is naturally compatible with the ATX/MATX chassis on the market. However, for some ITX chassis, it is not so friendly. We must be optimistic about the length of the graphics card that the chassis can support before purchasing. unnecessary trouble.
Colorful iGame GTX1050TI uses an open radiator, two 9cm dual fans can quickly discharge the heat generated by the GPU, while the characteristics of the open radiator air duct can also take into account the power supply, memory particles and other heating elements.
The fan blades are relatively simple and do not use the common Rainbow diversion design. However, the noise of the fan under the full load of the graphics card is not obvious, and the speed of the fan is almost not increased (the fan speed under full load is close to 1500 RPM).
At the top of the "player-custom" logo, unfortunately there is no addition to the light faith, but then again, light effects need not only purchase additional side-piercing or "hole flow" chassis in order to maximize the effect, and for a long time The light show will also cause visual fatigue.
For the GTX1050TI with a design power consumption of only 75W, no external power supply is required, but Colorful has added a single 6Pin external auxiliary power supply interface to ensure the stable power supply of the graphics card.
For more details, please enjoy the following open box rewards:
Atlas finally wait until you Colorful iGame GTX1050TI is out of the box
Dismantling: PCB, radiator blackening processing 3 +1 phase power supply
The graphics card is still relatively easy to disassemble. After unscrewing multiple screws, it is decomposed into four parts: fan, PCB, heat sink and metal back plate.
Friends who are familiar with the colorful graphics card should be familiar with this "BALZE DUO" heatsink, because this 1050TI uses the same heat sink as the previous generation 950. The heat sink is blackened as a whole, and a dense comb-like heat sink is covered on the surface to increase the heat dissipation area.
Turning to the bottom of the radiator, we can see that the double U-shaped heat pipe design is adopted here. Two 6-mm U-shaped pipes conduct heat conduction by connecting the base and the radiator. The heat pipe is made of pure copper, and the white part is treated with nickel plating. The advantage of this is that it can improve the oxidation resistance of the heat pipe.
Two 6mm heat pipes are in direct contact with the core. It can be seen that the two heat pipes just cover the 1050TI core. In addition, the heat sink is brushed.

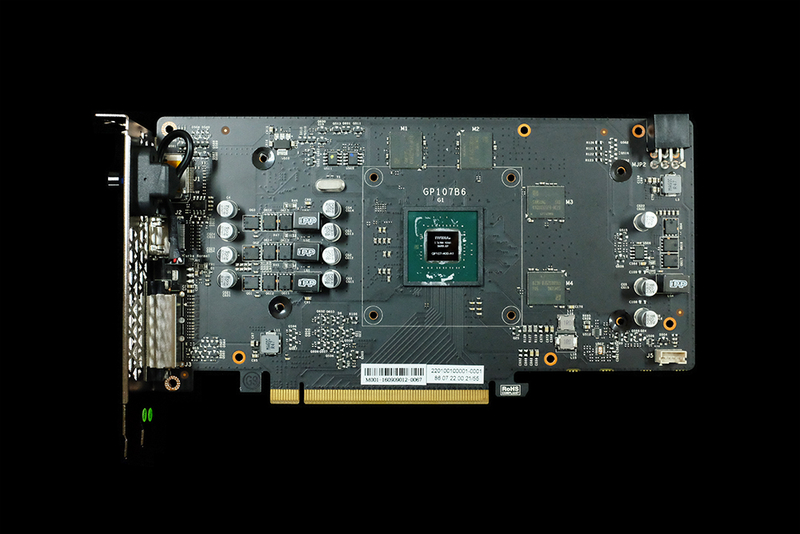

Consistent with the heat sink, the 1050TI's PCB has also been blackened. There are not many components on the front, and the overall appearance is relatively loose.
The back of the PCB is also simple.
Let's take a look at the core of this 1050TI. The specific model is GP107-400-A1. The reinforcement frame is also packaged around the GPU substrate. GP107 is also the third Pascal architecture core after GP104 and GP106.
There are four memory particles distributed around the GPU.
The memory particles are Samsung's GDDR5 SDRAM, the specific model is K4G80325FB-HC28, single-capacity is 1GB (256M×32bit/8), four components are 4GB/128bit, and the equivalent memory frequency is 7008MHz.
Let's take a look at the power supply section. The graphics card uses a 3+1 phase power supply design. The 3-phase core power supply and the 1-phase video memory power supply. The picture shows the 3-phase core power supply. The "one up and two down" MOSFET is paired with the Rainbow's own IPP inductor to bring more pure current.
1 phase memory power supply.
For more details, please see the following dismantling chart rewards:
Atlas new core Rainbow iGame GTX1050TI dismantling map reward
Core: The third core under the Pascal architecture - GP107
Before explaining the core of GP107, we will first give you a reference table of the 1050 series and Rainbow iGame GTX1050TI:
Compared with the public version of the 1050TI's specifications, the Rainbow iGame GTX1050TI has a 100MHz boost in both core frequency and Boost frequency, and adds a 6pin auxiliary power supply interface. Because the 1050 series graphics card does not use the public version of the first program, so the 50 series graphics card has also become the stage for various AIC manufacturers to show their strength.
Next, we look at the schematic diagram of the official architecture of this GP107. From the figure, we can see that there are two groups of GPCs (Graphics Processing Cluster), and there are a total of four 32-bit memory controllers on the left and right sides. Each memory control The device corresponds to a group of ROPs, each group of 8 ROP units, a total of 32 ROP units. Each GPC has three sets of Streaming Multiprocessors (SMs). Each group of SMs has 128 CUDA cores, and six groups of SMs have a total of 768 CUDA cores.
Compared with GP106 core of GTX1060, GP107 has reduced two sets of memory controllers (respectively, also reduced two sets of ROP cells) and four sets of SM cells (correspondingly reduced 512 CUDA cores). The number of CUDA cores is GP106. 60%.
Running points: Fully ahead of GTX960
The test platform is as follows:
Test software and environment are as follows:
Here we run the sub-test of this i7i iGame GTX1050TI. The first is 3DMark11. The Performance and Extreme modes ran out of 10,219 points and 3,730 points respectively, while the G points and X points of the GTX960 were basically around 9900 and 3300. (Note: Running points are all in non-overclocking mode)
3DMark Fire Strike scored 6969 points, while the GTX960 was basically around 6400 points.
Fire Strike Extreme scored 3,700 points, while the GTX960 was around 3,200.
Fire Strike Ultra scored 1945 points.
Time Spy scored 2608 points.
The GPU temperature is 34° in standby mode and the fan speed is 799 RPM.
The Furmark pressure test was essentially flat after 20 minutes. The maximum GPU temperature was 65° and the fan speed was 1469 RPM.
Game Test: "Watching the Pioneer"
In the game, we have selected three games, Watching Pioneer, NBA 2K17, and Tomb Raider: Rising. The three games represent popular online games, mainstream stand-alone games, and DX12 large-scale stand-alone games. Here we will Let's take a look at the performance of the colorful iGame GTX1050TI.
Resolution is 2560×1440, vertical synchronization is off, image quality is set to ultra-high, all other defaults
"Watching the Pioneer" as a popular online game nowadays, has attracted much attention since its release. In order to live up to the enthusiastic enthusiasm of the majority of players, Blizzard is also a conscience discovery, and does not blindly raise the threshold for entry to the game, but wants super-high image quality. Smooth running will test the hardware strength. Judging from the 1050TI's game performance, the 69-frame average can obviously run smoothly, and the super-high image quality can bring more delicate images. Those friends who are concerned that 1050TI cannot run smoothly have already dispelled concerns?
Game Test: "NBA 2K17"
Resolution is 2560×1440, vertical synchronization is off, anti-aliasing level is open to 8, all other details are set to high level
Yesterday also ushered in the new season of the US Basketball Team, I believe that the three games have already let everyone see with enthusiasm. Watching the game while playing an NBA game is the choice of many basketball fans. Here we use this 1050TI to experience one. Judging from the game's running status, the average number of running frames of the 120S is 41 frames, which can already run very smoothly, and is in the highest anti-aliasing level and high image quality.
Game Test: Tomb Raider: Rise
The resolution is set to 2560×1440, the anti-aliasing level is FXAA, and the image quality is set to a very high level
Tomb Raider: The Rise is the 10th generation of the Tomb Raider series, which has been further enhanced both in terms of storyline and picture quality. From the point of view of the game running, although the average 30 frames seem to be relatively low, but this is the result of the 2560 × 1440 resolution, FXAA anti-aliasing, ultra-high image quality, and in the process of running completely without Caton's phenomenon. Therefore, there is no problem to play DX12 masterpiece with Colorful iGame GTX1050TI.
Summary: Affordable Choice for Mild Players
Through the above part of the evaluation believe that you must have a deeper understanding of this colorful iGame GTX1050TI, round appearance plus the classic black and red color to make it look more distinctive, 9cm dual fan and 3 +1 phase Power supply design gives it a more stable performance. Most importantly, the third core GP107 under the Pascal architecture gives players a more affordable option.
In short, for the light players (the daily game time is 2-3 hours, the game is basically based on online games, mainstream games, etc.), GTX1050TI is really enough to use, popular online games naturally not matter, even DX12 masterpiece can also The medium and high effects are smooth and smooth. Of course, for local tyrants who are not bad, there is never a concept of "enough to use."
This colorful iGame GTX1050TI has already been sold in Jingdong. Like friends can pay attention. Jingdong link: http://item.jd.com/3473469.html
