OPEN MIND highlights three highlight technologies and five-axis machining strategy

CAM/CAD software developer OPEN MIND of Germany announced that it will participate in CCMT2018 on April 9-13, 2018 (Booth: N1-391, Shanghai New International Expo Center). With the theme of “perfect, precise and innovative five-axis machining”, OPEN MIND will highlight three highlight technologies: the innovative and efficient processing strategy hyperMILL® MAXX Machining; the virtual machining solutions hyperMILL® VIRTUAL Machining and the hyperMILL® innovative turning strategy. At the same time, in order to more intuitively demonstrate the subtlety of its five-axis machining strategy, visitors will witness a five-axis basketball box model that has just shined at the EMO European Machine Tool Show last September. .

Promote the improvement of “process capability”

The theme of this year's CCMT2018 is “Focus – Digital • Interconnection • Intellectual Manufacturing”, which is not only the mainstream and trend of the current industrial transformation in the world, but also the opportunities and challenges faced by many manufacturing companies. The application of five-axis processing equipment is growing rapidly and rapidly, and the contradiction has also changed from "do not hit the plane, can be used" to "creating value quickly and well." Helping customers to take the opportunity of “five axes” is the focus of OPEN MIND.

“Modern production management is a complex system engineering, and the company's improvement of 'process capability' becomes a necessity for competitive reengineering. Among them, CAM software is not only essential for the potential of five-axis processing, but also has an impact on the overall production results. Imagine.” Mr. Wu Qi, General Manager of OPEN MIND China, said, “Being out of traditional thinking, we will work with our customers to cope with increasingly stringent cost pressures and quality requirements. At this exhibition, customers will see our latest solutions and application verification. ."

Three highlights technology

Highlight 1: Innovation and efficient processing strategy hyperMILL® MAXX Machining.
A range of efficient machining strategies developed by OPEN MIND include roughing, finishing and multi-axis milling. Among them, the high-efficiency roughing strategy supports three-axis and five-axis at the same time, which can increase the efficiency of the roughing by 75%. For the five-axis finishing, the efficient processing strategy based on the application of an innovative tapered drum knives When machining flat and free-form surfaces, it saves up to 90% of the time compared to conventional ball-end knives and achieves unparalleled surface quality with traditional methods. hyperMILL® MAXX Machining's innovative and efficient machining strategy offers customers multiple benefits: shorter machining times, longer tool life, less machine wear, higher process reliability and better surface quality.

Highlight 2: Virtual Machining Solution hyperMILL® VIRTUAL Machining. This is an important step for OPEN MIND's digital production envisioned in Industry 4.0. With increasingly complex parts processing, production cycles are getting shorter and shorter, and manufacturing companies must minimize production preparation time and avoid downtime. The hyperMILL® VIRTUAL Machining virtual machining solution greatly exceeds the traditional offline machining program simulation, which combines CAM and machine tools to take production preparation to a whole new level. The solution establishes a two-way communication link with the machine tool. By establishing a virtual environment that is 100% consistent with the real processing environment, it can complete the preparation and verification before the actual machining without occupying an expensive machining center. Customers can even use the hyperMILL® VIRTUAL Machining remote direct control machine for actual machining.

Highlight 3: More efficient milling. Two new simultaneous machining strategies from 5-axis simultaneous turning provide more efficient milling. Complex workpiece geometries are machined in one work order step by simultaneously adjusting the plunging angle during turning operations. In this case, the synchronization sequence can be used to set the motion sequence of the pivot. The synchronous movement of the third axis is automatically calculated between the two sync lines. In addition, the hyperMILL® rollFEED turning strategy fits perfectly into Vandurit's innovative rollfeed® lathe blades. As a 5-axis machining strategy, rollFEED® turning can produce a rotationally symmetrical surface of any shape with the entire contour of the cutting edge of the tool, making flawless contours of the workpiece with little effort.

Exquisite ball frame concentrates on the five-axis processing strategy

At this exhibition, OPEN MIND will re-enact the five-axis processing basketball frame that EMO 2017 has drawn a lot of attention, so that the audience can feel the high-end skills and ingenious design of the OPEN MIND intelligent five-axis strategy.

A small basketball frame embodies the most comprehensive strategy of OPEN MIND's five-axis machining: the hyperMILL® adaptive cavity function creates a silky knife path by creating a spiral path, reducing the number of knives and transitions. The resulting pause; the use of five-axis end surface machining, the use of tool side edge milling to achieve efficient five-axis linkage rough; efficient roughing, in the five-axis shape offset processing, open high-performance mode, can produce five-axis linkage Cycloidal tool rails, more efficient material removal and reduced tool wear, five-axis linkage clearing, 100% safe...

OPEN MIND's professional technical team has also prepared a number of application cases, at which time, the client will explain in detail the world's most cutting-edge, most valuable five-axis machining strategy. Perfect, precise and reliable 5-axis machining at OPEN MIND@CCMT 2018

OPEN MIND will bring a number of innovative smart solutions to CCTV 2018 (Booth: N1-391) to bring a smart feast to the audience.

The basketball frame that has sparked a lot of attention in EMO will reproduce CCMT2018, which embodies the most comprehensive strategy of OPEN MIND five-axis machining.

PCB Connectors

PCB Connectors: Backplane, Wire-to-Board, Board-to-Board Connectors

These types of connector systems are mounted or processed to a printed circuit board (PCB). There are a variety of PCB connectors and accessories best designed for specific uses. To name some, they include:Din41612 Connector,Board To Board Connectors,battery holders Clips Contacts,Future Bus Connectors,PLCC Connectors.

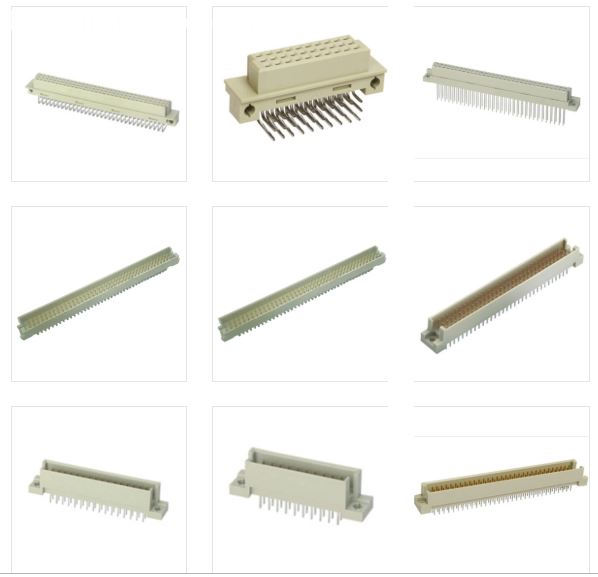

Din41612 Connector

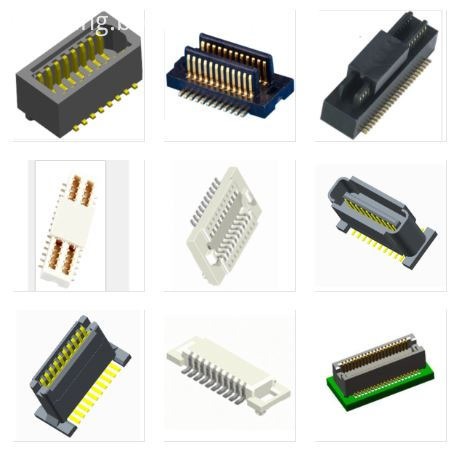

Board To Board Connectors

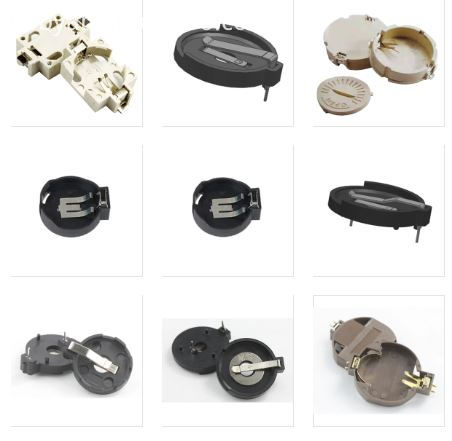

Battery Holders Clips Contacts

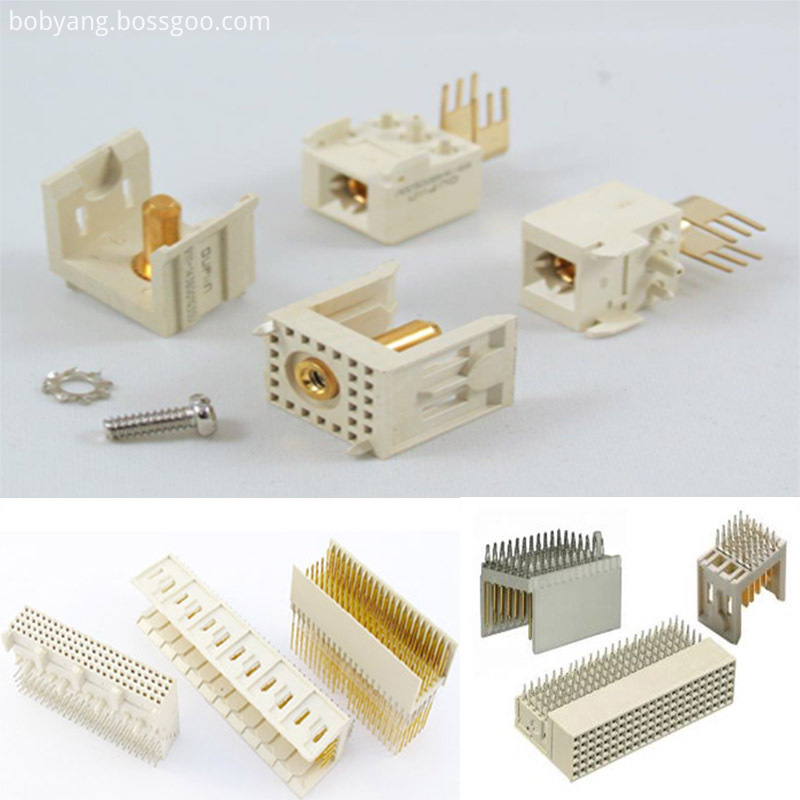

Future Bus Connectors

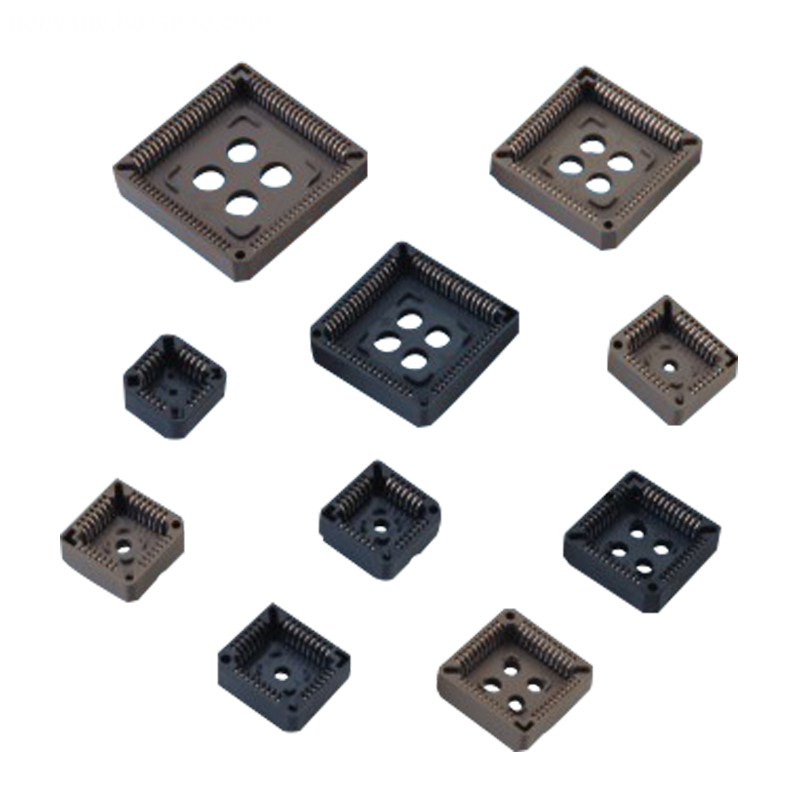

PLCC Connectors

1.ANTENK manufactures a wide range of application specific board stacking PCB connectors which were designed and built to specific customer requirements. Our experienced staff has developed custom products in a variety of contact styles, pitches and stacking heights. Our designs range from new concepts to duplicating existing market products identically or with improvements. Many desigsn are produced using automated manufacturing processes to increase reliability and provide significant cost savings.

2.Our products are widely used in electronic equipments,such as monitors ,electronic instruments,computer motherboards,program-controlled switchboards,LED,digital cameras,MP4 players,a variety of removable storage disks,cordless telephones,walkie-talkies,mobile phones,digital home appliances and electronic toys,high-speed train,aviation,communication station,Military and so on

What is a PCB Connector?
Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.

PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

Parallel or mezzanine – both connectors are vertical orientation;
90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.

Din41612 Connector,Board To Board Connectors,Battery Holders Clips Contacts,Future Bus Connectors,PLCC Connectors
